Discover Network Services

Overview

Room URL: https://tryhackme.com/room/networkservices-aoc2025-jnsoqbxgky
Difficulty: Easy
Category: Network Scanning
Date Completed: 12/7/2025

Objectives

• Learn the basics of network service discovery with Nmap
• Learn core network protocols and concepts along the way
• Apply your knowledge to find a way back into the server

Table of Contents

Introduction
Walk Through
Lessons Learned
Resources

Introduction

After regaining knowledge of the tbfc-devqa01 QA server's IP address, TBFC's security team launches a counterattack to reclaim the compromised system from HopSec's grasp. The server greets you with a defaced website proclaiming "Pwned by HopSec," but beneath this digital taunt lies a vulnerability: exposed services running on non-standard ports. Your mission is to systematically discover these hidden services through multi-layered port scanning, extract three critical keys scattered across different protocols (FTP, custom TCP, and DNS), and use them to access a secret admin console. Once inside, you'll uncover additional internal services and retrieve the final flag from the MySQL database, exposing the full extent of the breach and paving the way for complete system recovery.

Key Information

• Target Server: tbfc-devqa01 QA server (IP: 10.81.144.241) - currently compromised and defaced with the message "Pwned by HopSec"
• Multi-Protocol Attack Surface: The server exposes five key services across different ports and protocols:
  • Port 22/TCP: SSH (OpenSSH 9.6p1 Ubuntu-3ubuntu13.14)
  • Port 80/TCP: HTTP web server (defaced landing page)
  • Port 21212/TCP: FTP server (vsFTPd 3.0.5) - contains tbfc_qa_key1
  • Port 25251/TCP: Custom TBFC maintd v0.2 application - contains tbfc_qa_key2
  • Port 53/UDP & TCP: DNS server - contains tbfc_qa_key3 in TXT records
• Three Critical Keys Required: All keys follow the format KEYNAME:KEY and are distributed across:
  1. FTP anonymous login on port 21212
  2. Netcat connection to custom TBFC app on port 25251 (requires GET KEY command)
  3. DNS TXT record query via dig @10.81.144.241 TXT key3.tbfc.local
• Internal Services Discovered Post-Access: After gaining admin console access using the combined keys (e3ster_15_th3_n3w_xm45), additional localhost-only services are revealed:
  • Port 3306/TCP (127.0.0.1): MySQL database (tbfcqa01) containing the final flag in the flags table
  • Port 8000/TCP (127.0.0.1): Internal application service
  • Port 7681/TCP (127.0.0.1): Additional internal service
• Reconnaissance Tools:
  • nmap for TCP/UDP port scanning with banner detection (-p- for all ports, --script=banner for service identification, -sU for UDP scanning)
  • ftp client for anonymous FTP access
  • nc (Netcat) for custom protocol interaction
  • dig for DNS queries
  • ss -tunlp or netstat for listing active listening ports post-exploitation

Walk Through

1. Start the target machine and connect to the VPN
2. What evil message do you see on top of the website?
   1. IP 10.81.144.241
      1. In web-browser go to http://10.81.144.241
   2. Top Banner says TBF QA Pwned by HopSec
3. What is the first key part found on the FTP server?
   1. Run a simple scan on 10.81.144.241 using nmap

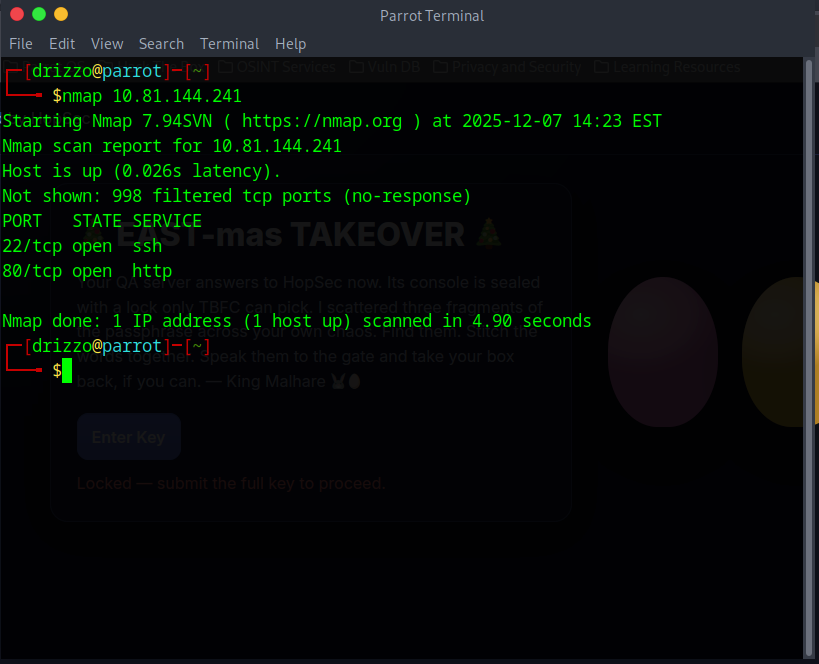

   2. nmap 10.81.144.241
      1. Results show 22/tcp open and 80/tcp open
      2.

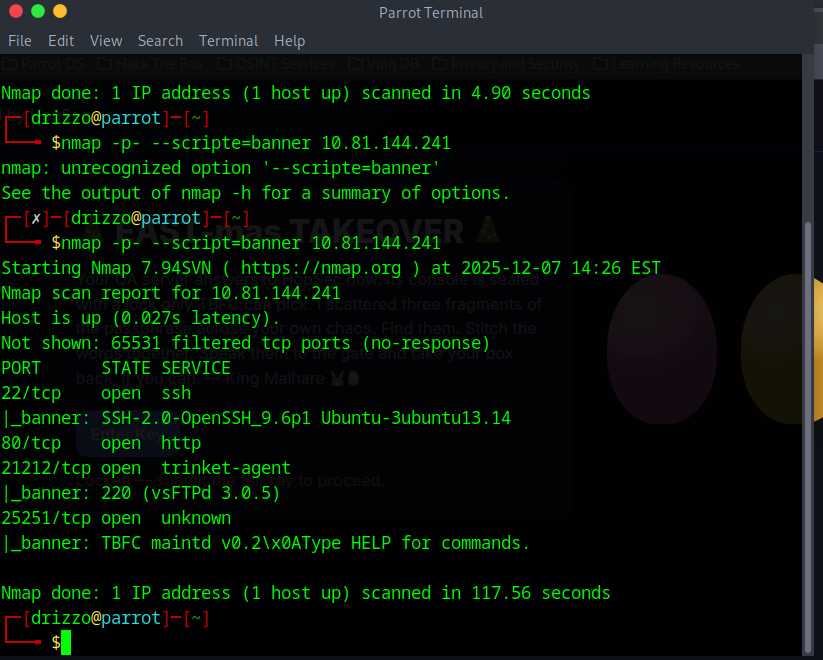

   3. nmap -p- --script=banner 10.81.144.241
      1. -p- scans all ports
      2. --script=banner shows what is likely behind the ports
      3. This san revealed two extra ports
         1. 21212/tcp open (vsFTPd 3.0.5)
         2. 25251/tcp open (TBFC maintd v0.2x0A
         3.

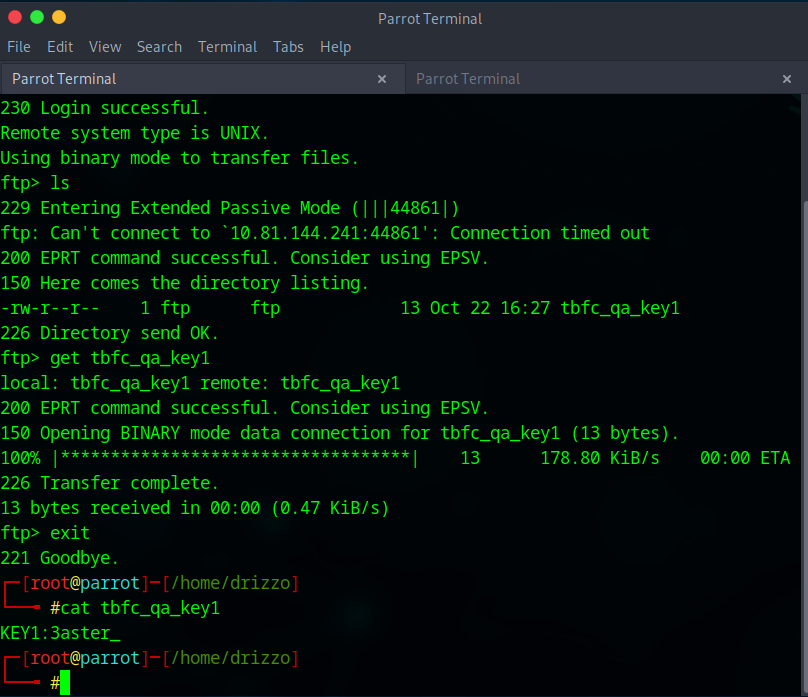

   4. Opened FTP connection in using ftp 10.81.144.241 21212
      1. username anonymous
      2. ls to list files
      3. get tbfc qa_key1 to download file
      4. exit
      5. cat tbfc_qa_key1 to view key
      6.
4. What is the second key part found in the TBFC app?
   1. Use netcat to get more information from port 25251

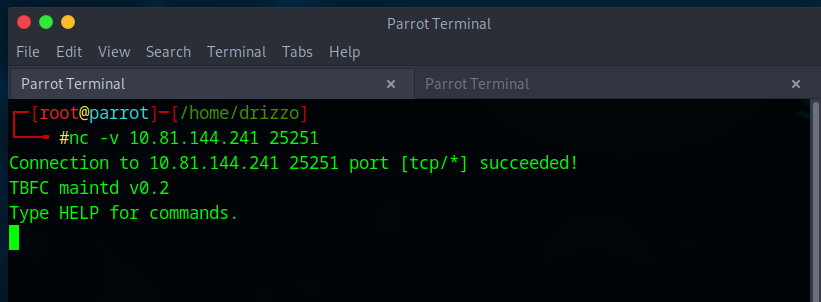

   2. nc -v 10.81.144.241 25251
      1.

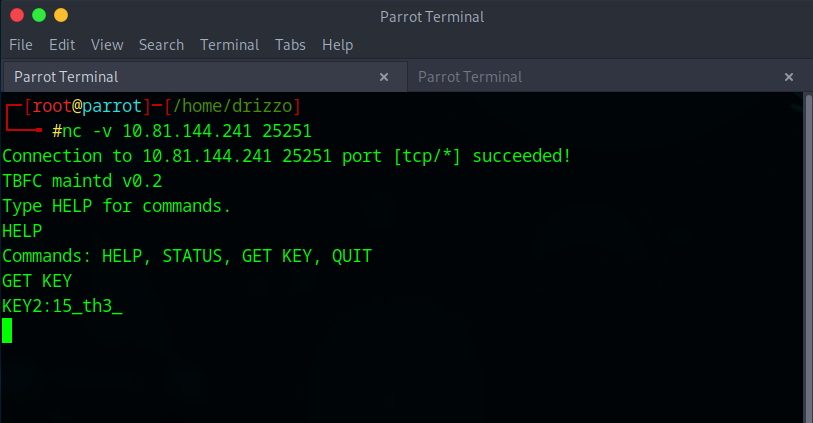

   3. Use HELP to view commands
      1.
   4. Use GET KEY to view key
      1.

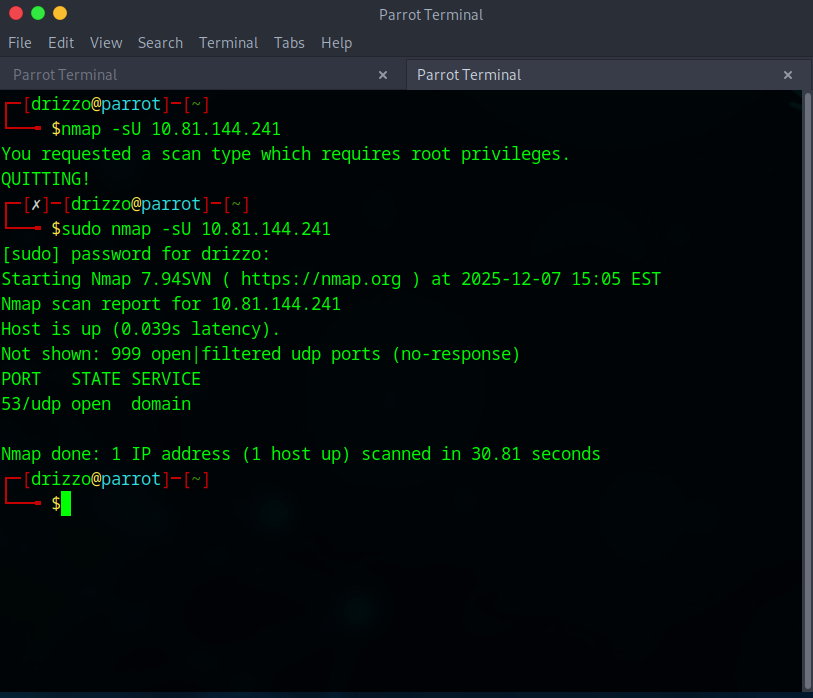

5. What is the third key part found in the DNS records? 1. Use nmap to scan UDP ports instead of TCP 2. nmap -sU 10.81.144.241 1. 3. Use dig to see records on DNS server 1. dig @10.81.144.241 TXT key3.tbfc.local 1.
6. Which port was the MySQL database running on?
   1. Log into the admin portal at http://10.81.144.241

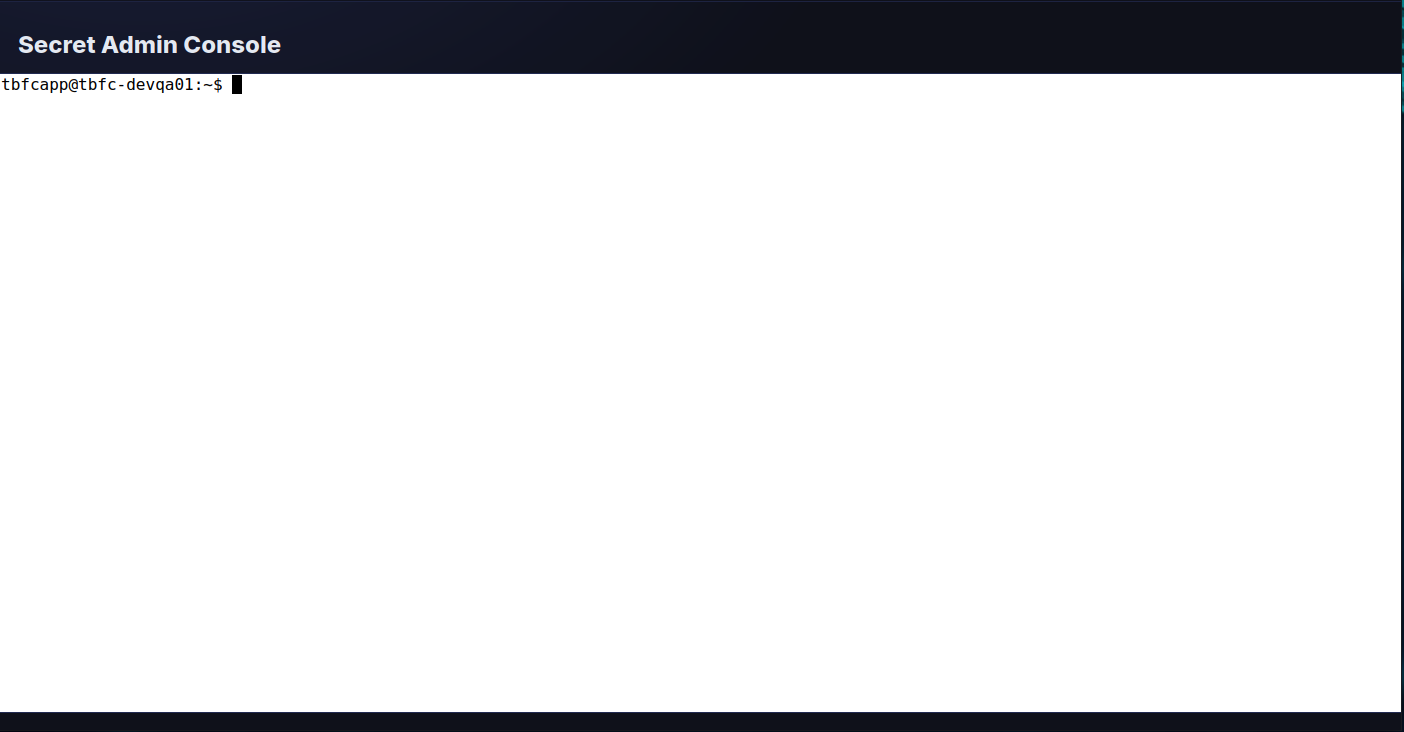

   2. use e3ster_15_th3_n3w_xm45 to access portal
      1.

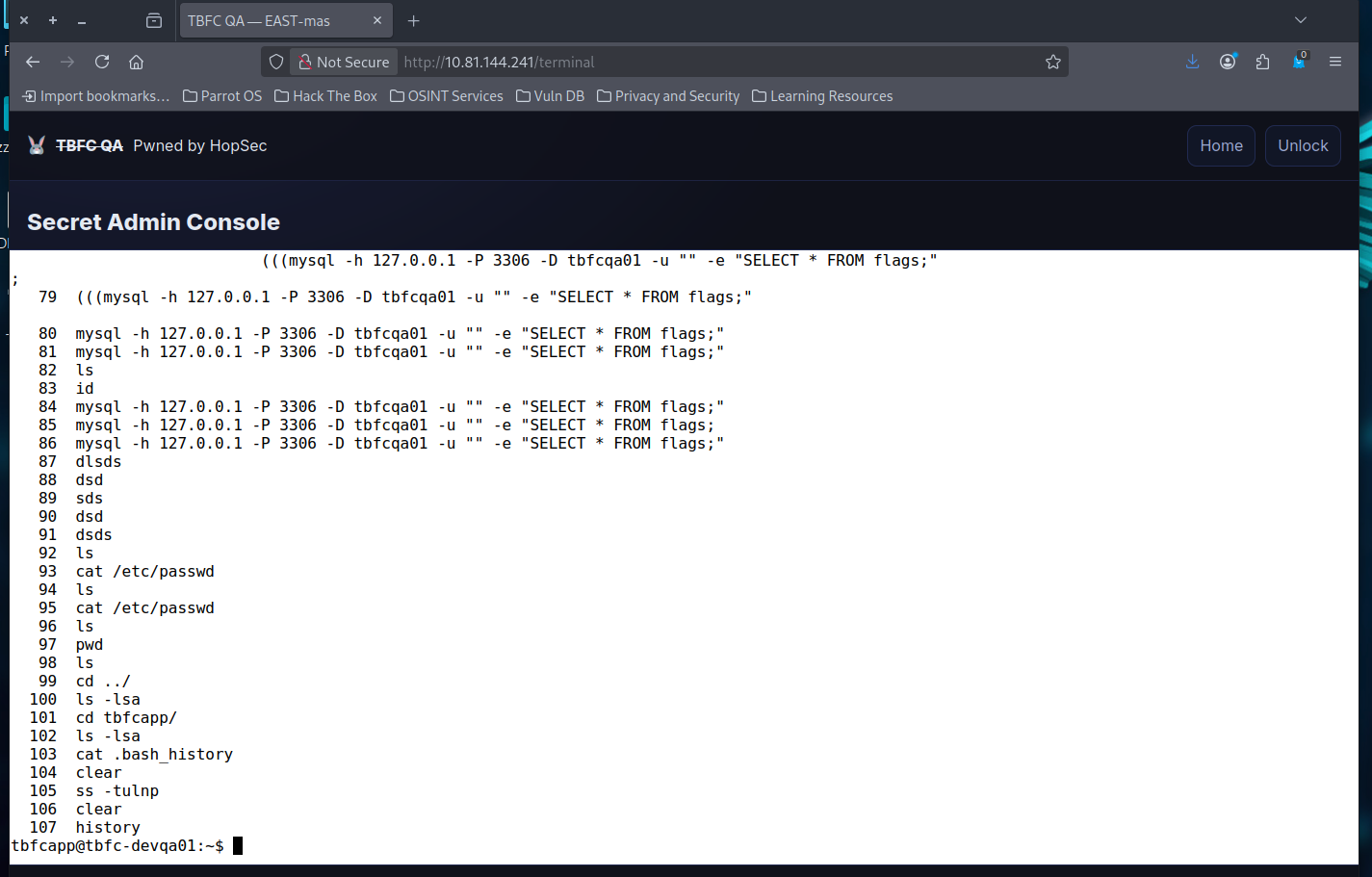

   3. Can use histroy to see the terminal history
      1. That reveals ports 56123 and 3306 used in mysql commands

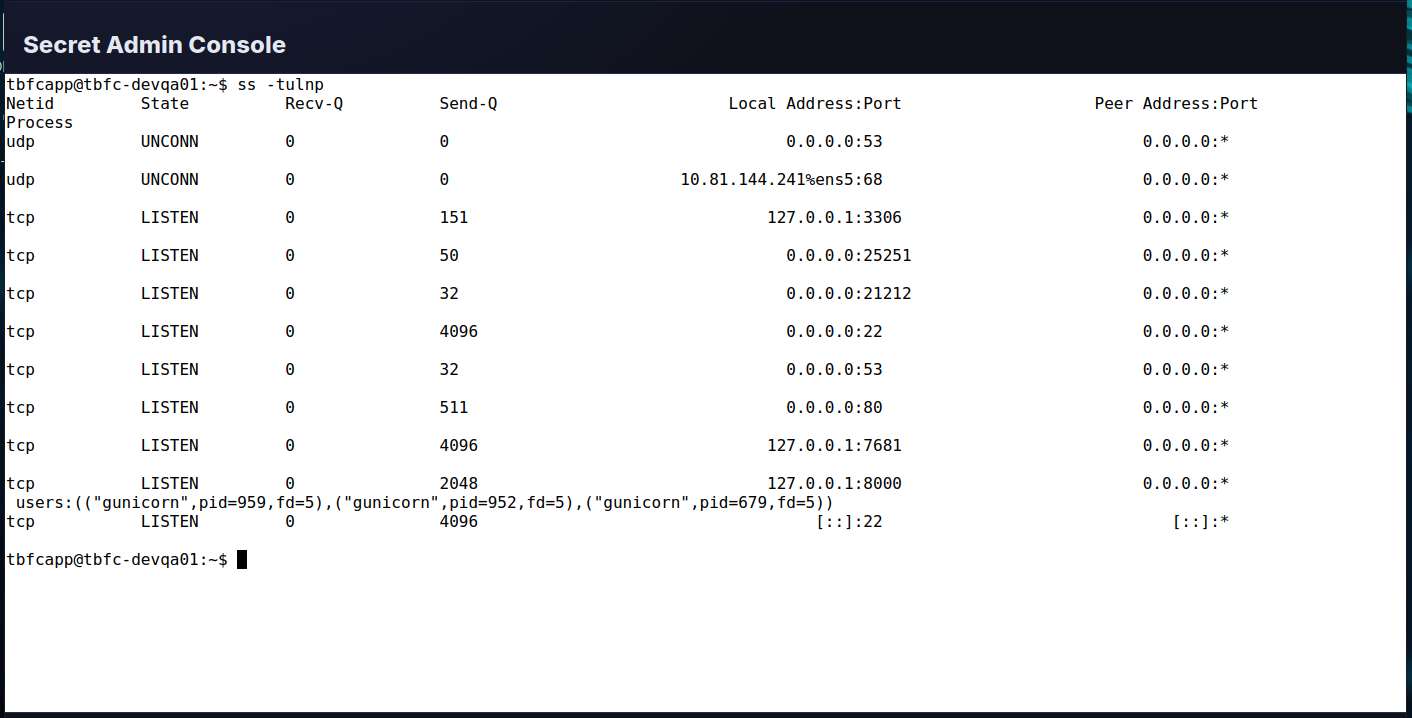

   4. Can also use ss -tulnp to see open listening connections
      1. This reveals port 3306 is active and listening on the localhost
         1.
   5. Finally, what's the flag you found in the database?
      1. The history reveals a database of tbfcqa01
         1.

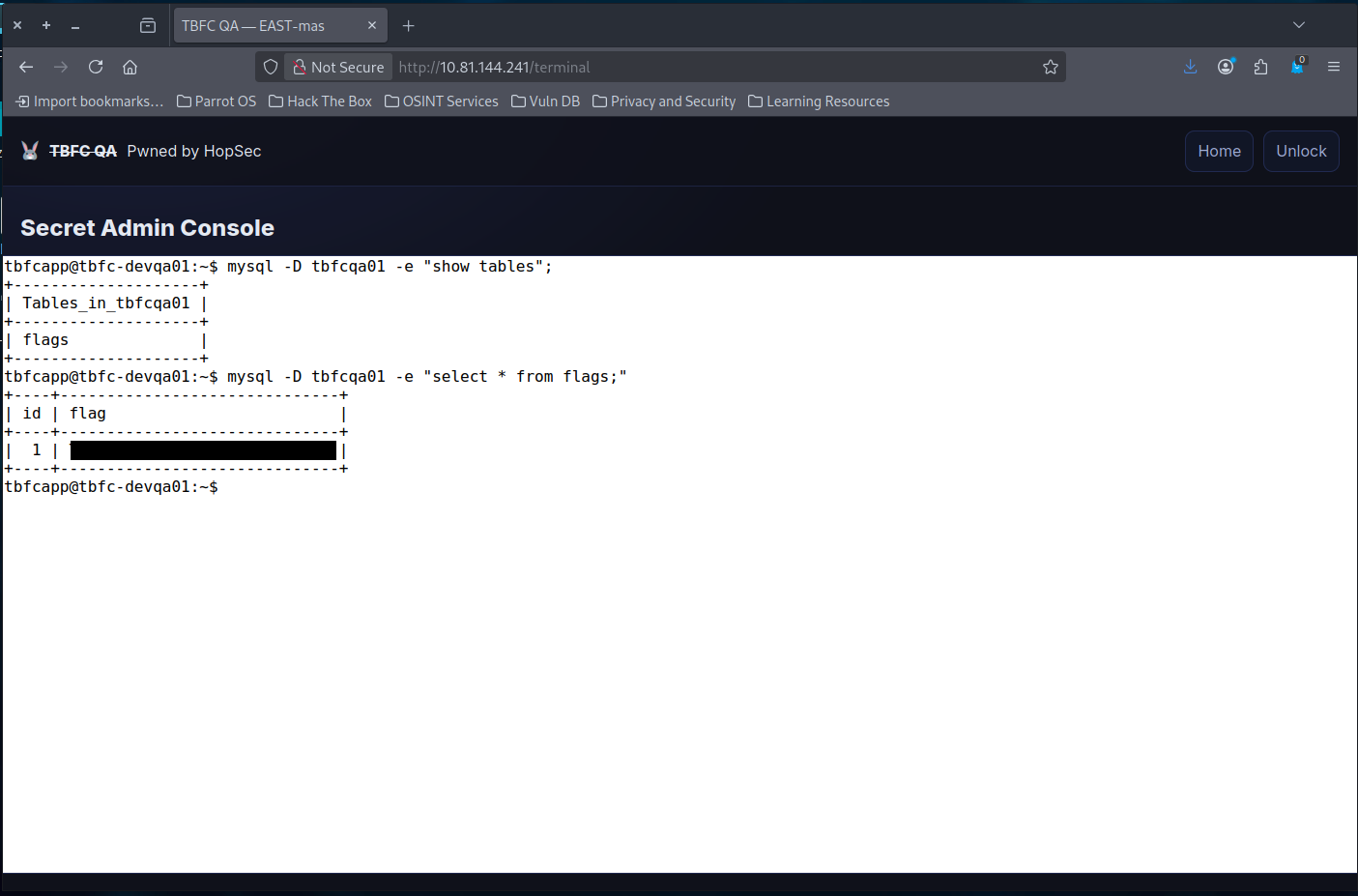

      2. mysql -D tbfcqa01 -e "show tables;" to view tables
      3. mysql -D tbfcqa01 -e "select * from flags;"
         1.

Lessons Learned

• Multi-Protocol Reconnaissance: Mastered comprehensive port scanning techniques using Nmap (TCP full range, UDP scanning, and banner detection) to identify hidden services beyond the default 1000 ports, discovering that attackers often hide malicious services on non-standard ports like 21212 (FTP) and 25251 (custom TBFC application).

• Service Enumeration and Exploitation: Learned to interact with discovered services using protocol-specific tools (FTP client, Netcat for custom protocols, dig for DNS queries) and post-exploitation techniques (ss/netstat for internal service discovery, MySQL querying) to progressively escalate access and extract sensitive information from both external and internal-only services.
